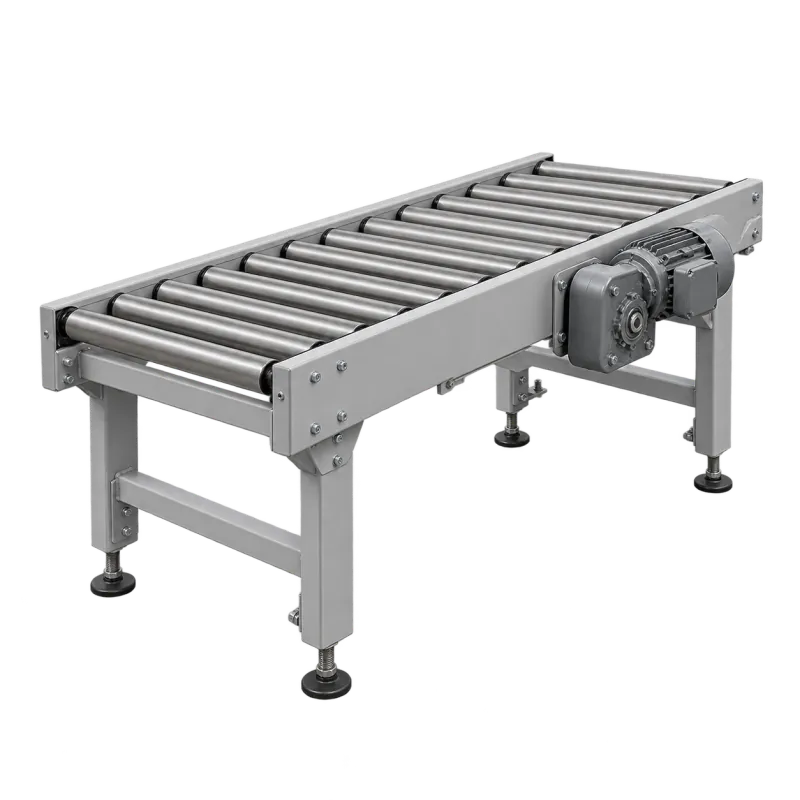

For material handling and conveyors
Frames and profiles, measured off the model, not re-measured.
Frames, supports and guarding redrawn and re-measured on every job, even when half of it matches the last one.
Talk to us
- PROFILES RE-MEASURED BY HAND
- MEASURED OFF THE MODEL
Four products
- BOM Every part, measured, with what to make and what to buy.
- Drawings Editable sheets in your format, unclear values flagged.
- Costing Data-driven quotes that match what the job actually costs.
- Sourcing Buy on what you have actually paid, not on habit.
What you get
Frames and profiles measured once, off the model.
drawgen reads every profile, plate and bearing straight from the assembly. The parts that match the last job show up as repeats, so nobody measures them twice.
Bought and made
Profiles, plate, bearings.
- BOM Every profile with its length and mass, with plate and bearings in the same BOM.
- Drawings Editable sheets for side frames, supports and guarding, in your own format.
- Costing A price for the next conveyor built on what similar conveyors actually cost you.
- Sourcing Profiles and bearings bought from the supplier that has actually been cheapest and fastest.
Show us one of your jobs.
The fastest way to see whether this works for you is to try it on something real.
