For heavy fabrication and steel
Big steel, measured off the model, not with a tape.
Cut lengths and coating areas measured by hand off the model, and critical edge-to-hole dimensions missed.
Talk to us
- STEEL MEASURED BY TAPE
- CUT LIST FROM THE MODEL
Four products
- BOM Every part, measured, with what to make and what to buy.
- Drawings Editable sheets in your format, unclear values flagged.
- Costing Data-driven quotes that match what the job actually costs.
- Sourcing Buy on what you have actually paid, not on habit.
What you get
Cut lengths and coating areas, straight from the model.
drawgen measures every beam, plate and weldment off the solid, including the surface area you coat. Nobody takes a tape to the model, and the steel list is ready to check.
Bought and made

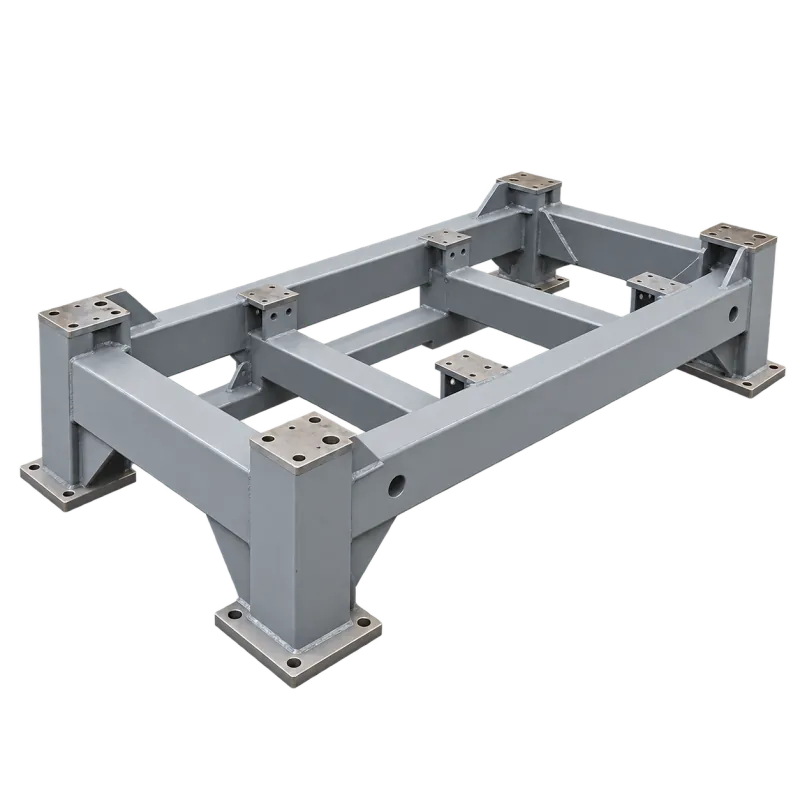

Beams, plate, weldments.
- BOM Every beam and plate with its profile, cut length, mass and surface area.
- Drawings Editable sheets for beams, plate and weldments, with unclear dimensions flagged for your engineer.
- Costing A price for the next structure, built on what similar steelwork actually cost you.
- Sourcing Steel and plate bought from the supplier your record shows has been cheapest and fastest.
Show us one of your jobs.
The fastest way to see whether this works for you is to try it on something real.
